canvas图表的绘制

绘制网格

<!DOCTYPE html>
<html lang="en">
	<head>
		<meta charset="UTF-8">
		<title>Title</title>
		<style>
			canvas {
				border: 1px solid #ccc;
			}
		</style>
	</head>
	<body>
		<canvas width="600" height="400"></canvas>
		<script>
			var myCanvas = document.querySelector('canvas');
			var ctx = myCanvas.getContext('2d');

			/*1.绘制网格*/
			/*2.网格的大小*/
			var gridSize = 10;
			// 获取画布大小
			var canvasHeight = ctx.canvas.height;
			var canvasWidth = ctx.canvas.width;
			// 计算线X轴方向的线条数*/
			var xTotal = Math.floor(canvasHeight / gridSize);
			for (var i = 0; i <= xTotal; i++) {
				ctx.beginPath();
				ctx.moveTo(0, i * gridSize - 0.5)
				ctx.lineTo(canvasWidth, i * gridSize - 0.5)
				ctx.strokeStyle = '#eee';
				ctx.stroke();
			}
			// 计算线Y轴方向的线条数*/
			var yTotal = Math.floor(canvasWidth / gridSize);
			for (var i = 0; i <= yTotal; i++) {
				ctx.beginPath();
				ctx.moveTo(i * gridSize - 0.5, 0)
				ctx.lineTo(i * gridSize - 0.5, canvasHeight)
				ctx.strokeStyle = '#eee';
				ctx.stroke();
			}
			/*5.遍历的形式去画*/
		</script>
	</body>
</html>

绘制坐标系

/*1.绘制坐标系*/
/*2.确定原点*/
/*3.确定距离画布旁边的距离*/
/*4.确定坐标轴的长度*/
/*5.确定箭头的大小  是个等边三角形  10 */
/*6.绘制箭头填充*/

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
        canvas {
            border: 1px solid #ccc;
        }
    </style>
</head>
<body>
<canvas width="600" height="400"></canvas>
<script>
    var myCanvas = document.querySelector('canvas');
    var ctx = myCanvas.getContext('2d');

	/* 确定距离画布旁边的距离 */
    var space = 20;
	/* 确定箭头的大小 */
    var arrowSize = 10;

    /*计算原点*/

	/* 获取获取画布的大小 */
    var canvasWidth = ctx.canvas.width;
    var canvasHeight = ctx.canvas.height;

    var x0 = space;
    var y0 = canvasHeight - space;

	/* 等边三角形的高 */
	var arrowH = arrowSize/2*Math.sqrt(3)

	/*绘制x轴*/
	ctx.beginPath();
    ctx.moveTo(x0, y0);
	ctx.lineTo(canvasWidth - space,y0)
	ctx.stroke();


	/* 画X轴箭头 */

	ctx.beginPath();
	ctx.moveTo(canvasWidth - space - arrowH, y0 - 5);
	ctx.lineTo(canvasWidth - space,y0)
	ctx.lineTo(canvasWidth - space - arrowH, y0 + 5)
	ctx.closePath()
	ctx.fill();
	ctx.stroke();

	/*绘制y轴*/
	ctx.beginPath();
    ctx.moveTo(x0, y0);
	ctx.lineTo(space,space)
	ctx.stroke();

	/* 画Y轴箭头 */
	ctx.beginPath();
	ctx.moveTo(space-5, space+arrowH);
	ctx.lineTo(space,space)
	ctx.lineTo(space+5,space+arrowH)
	ctx.closePath()
	ctx.fill();
	ctx.stroke();

</script>
</body>
</html>

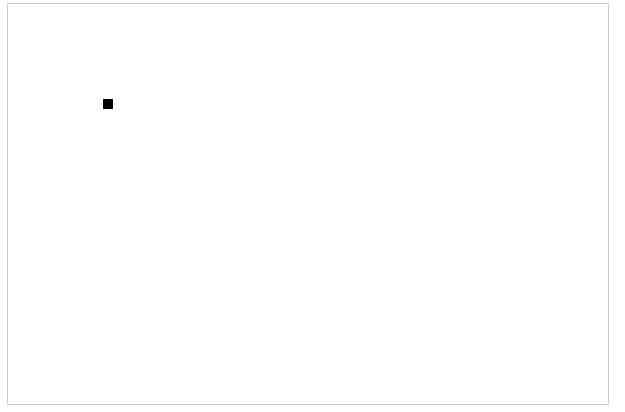

绘制坐标点

/*1.绘制点*/
/*2.点的尺寸*/
/*3.以坐标中心绘制点*/

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <style>
        canvas {
            border: 1px solid #ccc;
        }
    </style>
</head>
<body>
<canvas width="600" height="400"></canvas>
<script>
    var myCanvas = document.querySelector('canvas');
    var ctx = myCanvas.getContext('2d');

		/*1.绘制点*/
		/*2.点的尺寸*/
		/*3.以坐标中心绘制点*/

    /*点坐标*/
    var coordinate = {
        x:100,
        y:100
    }
    /*点尺寸*/
    var dottedSize = 10;

    /* 保证以坐标中心绘制点 */
    ctx.moveTo(coordinate.x - dottedSize / 2,coordinate.y - dottedSize / 2);
    ctx.lineTo(coordinate.x + dottedSize / 2,coordinate.y - dottedSize / 2);
    ctx.lineTo(coordinate.x + dottedSize / 2,coordinate.y + dottedSize / 2);
    ctx.lineTo(coordinate.x - dottedSize / 2,coordinate.y + dottedSize / 2);
    ctx.closePath();
    ctx.fill();

</script>
</body>
</html>

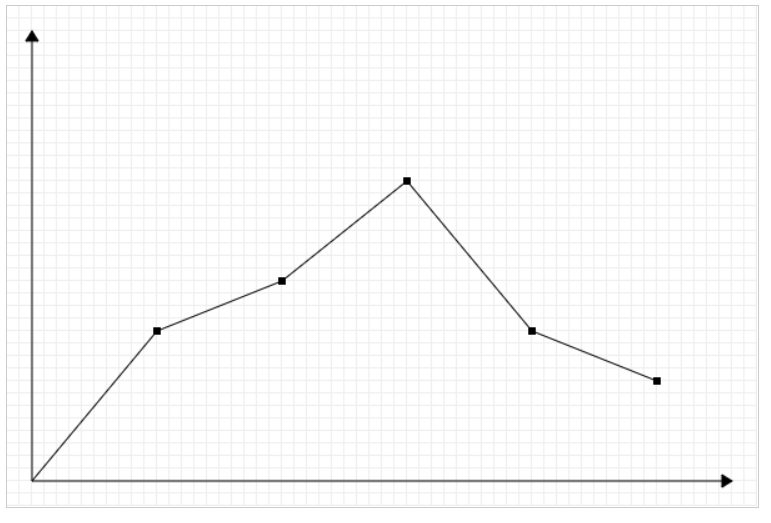

因此，一个完整的折线图就可以拼凑一块儿组成：

完整折线图

<!DOCTYPE html>
<html lang="en">
	<head>
		<meta charset="UTF-8">
		<title>Title</title>
		<style>
			canvas {
				border: 1px solid #ccc;
			}
		</style>
	</head>
	<body>
		<canvas width="600" height="400"></canvas>
		<script>
			/*1.构造函数*/
			var LineChart = function(ctx) {
				/*获取绘图工具*/
				this.ctx = ctx || document.querySelector('canvas').getContext('2d');
				/*画布的大小*/
				this.canvasWidth = this.ctx.canvas.width;
				this.canvasHeight = this.ctx.canvas.height;
				/*网格的大小*/
				this.gridSize = 10;
				/*坐标系的间距*/
				this.space = 20;
				/*坐标原点*/
				this.x0 = this.space;
				this.y0 = this.canvasHeight - this.space;
				/*箭头的大小*/
				this.arrowSize = 10;
				/* 等边三角形的高 */
				this.arrowH = Math.floor(this.arrowSize / 2 * Math.sqrt(3))
				/*绘制点*/
				this.dottedSize = 6;
				/*点的坐标 和数据有关系  数据可视化*/
			}
			/*2.行为方法*/
			LineChart.prototype.init = function(data) {
				this.drawGrid();
				this.drawAxis();
				this.drawDotted(data);
			};
			/*绘制网格*/
			LineChart.prototype.drawGrid = function() {
				/*x方向的线*/
				var xLineTotal = Math.floor(this.canvasHeight / this.gridSize);
				this.ctx.strokeStyle = '#eee';
				for (var i = 0; i <= xLineTotal; i++) {
					this.ctx.beginPath();
					this.ctx.moveTo(0, i * this.gridSize - 0.5);
					this.ctx.lineTo(this.canvasWidth, i * this.gridSize - 0.5);
					this.ctx.stroke();
				}
				/*y方向的线*/
				var yLineTotal = Math.floor(this.canvasWidth / this.gridSize);
				for (var i = 0; i <= yLineTotal; i++) {
					this.ctx.beginPath();
					this.ctx.moveTo(i * this.gridSize - 0.5, 0);
					this.ctx.lineTo(i * this.gridSize - 0.5, this.canvasHeight);
					this.ctx.stroke();
				}
			};
			/*绘制坐标系*/
			LineChart.prototype.drawAxis = function() {

				/*绘制x轴*/
				this.ctx.beginPath();
				this.ctx.strokeStyle = '#000';
				this.ctx.moveTo(this.x0, this.y0);
				this.ctx.lineTo(this.canvasWidth - this.space, this.y0)
				this.ctx.lineTo(this.canvasWidth - this.space - this.arrowH, this.y0 - this.arrowSize / 2);
				this.ctx.lineTo(this.canvasWidth - this.space - this.arrowH, this.y0 + this.arrowSize / 2);
				this.ctx.lineTo(this.canvasWidth - this.space, this.y0)
				this.ctx.stroke();
				this.ctx.fill();

				/*Y轴*/
				this.ctx.beginPath();
				this.ctx.strokeStyle = '#000';
				this.ctx.moveTo(this.x0, this.y0);
				this.ctx.lineTo(this.space, this.space);
				this.ctx.lineTo(this.space-this.arrowSize / 2, this.space+this.arrowH);
				this.ctx.lineTo(this.space + this.arrowSize / 2, this.space+this.arrowH);
				this.ctx.lineTo(this.space, this.space);
				this.ctx.stroke();
				this.ctx.fill();
			};
			/*绘制所有点*/
			LineChart.prototype.drawDotted = function(data) {
				/*1.数据的坐标 需要转换 canvas坐标*/
				/*2.再进行点的绘制*/
				/*3.把线连起来*/
				var that = this;
				/*记录当前坐标*/
				var prevCanvasX = 0;
				var prevCanvasY = 0;
				data.forEach(function(item, i) {
					/* x = 原点的坐标 + 数据的坐标 */
					/* y = 原点的坐标 - 数据的坐标 */
					var canvasX = that.x0 + item.x;
					var canvasY = that.y0 - item.y;
					/*绘制点*/
					that.ctx.beginPath();
					that.ctx.moveTo(canvasX - that.dottedSize / 2, canvasY - that.dottedSize / 2);
					that.ctx.lineTo(canvasX + that.dottedSize / 2, canvasY - that.dottedSize / 2);
					that.ctx.lineTo(canvasX + that.dottedSize / 2, canvasY + that.dottedSize / 2);
					that.ctx.lineTo(canvasX - that.dottedSize / 2, canvasY + that.dottedSize / 2);
					that.ctx.closePath();
					that.ctx.fill();
					/*点的连线*/
					/*当时第一个点的时候 起点是 x0 y0*/
					/*当时不是第一个点的时候 起点是 上一个点*/
					if (i == 0) {
						that.ctx.beginPath();
						that.ctx.moveTo(that.x0, that.y0);
						that.ctx.lineTo(canvasX, canvasY);
						that.ctx.stroke();
					} else {
						/*上一个点*/
						that.ctx.beginPath();
						that.ctx.moveTo(prevCanvasX, prevCanvasY);
						that.ctx.lineTo(canvasX, canvasY);
						that.ctx.stroke();
					}
					/*记录当前的坐标，下一次要用*/
					prevCanvasX = canvasX;
					prevCanvasY = canvasY;
				});
			};
			/*3.初始化*/
			var data = [{
					x: 100,
					y: 120
				},
				{
					x: 200,
					y: 160
				},
				{
					x: 300,
					y: 240
				},
				{
					x: 400,
					y: 120
				},
				{
					x: 500,
					y: 80
				}
			];
			var lineChart = new LineChart();
			lineChart.init(data);
		</script>
	</body>
</html>
